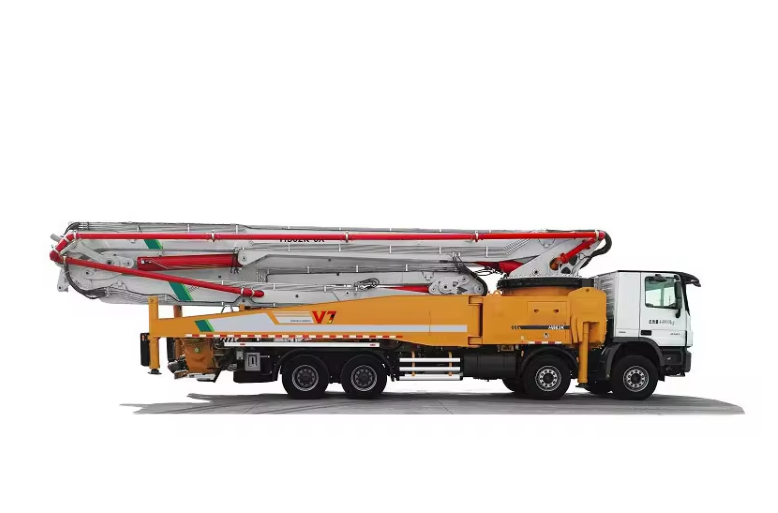

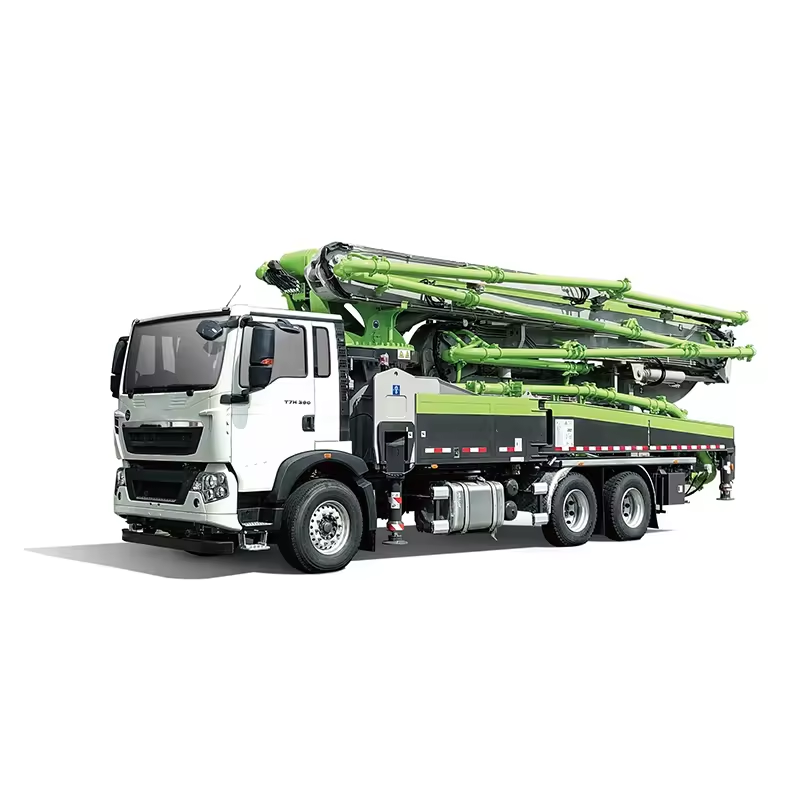

Concrete pump truck
Concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
Description
Features:
1. High configuration: adopt the core components of international high-end brands, and become long-term strategic partners with companies such as German Spall, Rexroth, Harvey, HBC, Italian Wolff, NEM, and American Eaton;
2. Stable performance and low failure rate: through three-dimensional modeling and finite element analysis, the structure is more reasonable and the performance of the whole machine is more stable; the failure rate has been low after more than 20 years of market inspection;
3. High construction efficiency and wide construction range: equipped with high and low pressure automatic switching function, pumping is self-adaptive, energy-saving and efficient;
4. Strong human-computer interaction, easy operation of intelligent control, simple and clear troubleshooting.
Parameter:
| Pumping system | Max. Theor. output | m3/h | 170 |
| Max. Theor. concrete output Pressure | MPa | 10 | |
| Hopper capacity | L | 600 | |
| Filling height | mm | 1400 | |
| Hydraulic system type | Open loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.x stroke | mm | φ140×2100 | |
| Concrete cylinder dia.×stroke | mm | φ260×2100 | |
| Hydraulic oil cooling | Air cooling | ||
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | 56-6RZ | |
| Placing depth | m | 56 | |
| Horizontal distance | m | 51 | |
| Placing depth | m | 39.2 | |
| Slewing angle | ±270° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Chassis and the whole machine | Chassis model | ZZ5446V516MF1 | |
| Wheelbase | mm | 1950+4500+1400 | |
| Engine type | MC11.44-60 | ||
| Engine power | kW | 323kw | |
| Oil tank cubage | L | 400 | |
| Tail gas exhaust standard | Ⅵ | ||
| Overall dimensions | mm | 14180x2550x4000 | |
| Others | Lubrication mode | Manual hydraulic dual-purpose synchronous lubrication pump | |
| Oil tank volume | L | 650 | |
| Control mode | Manual＋remote control | ||
| Maximum water pressure | MPa | 0.8 | |
| Water tank volume | L | 1000 | |
| Pipe cleaning mode | Water cleaning/dry cleaning |

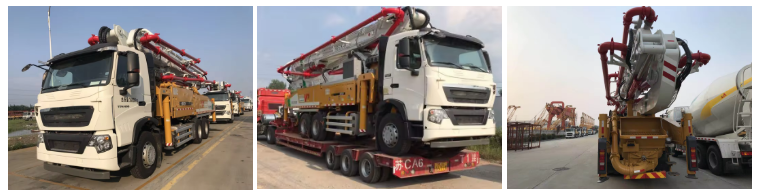

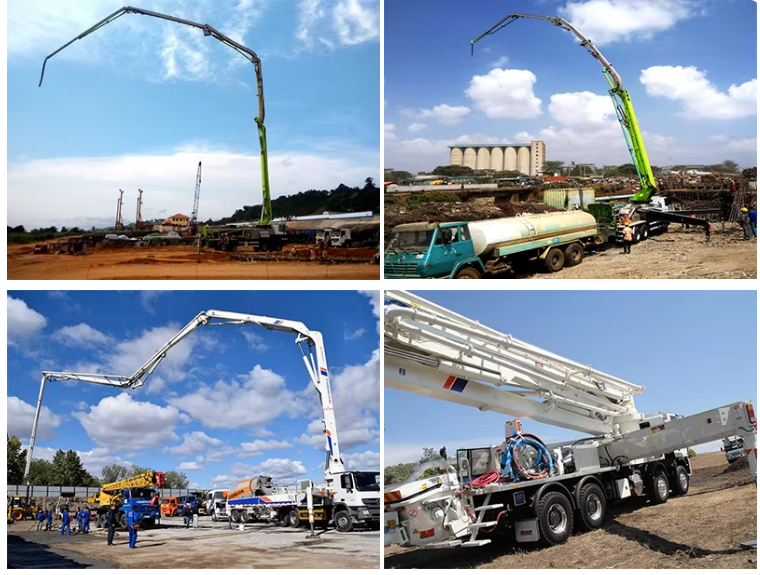

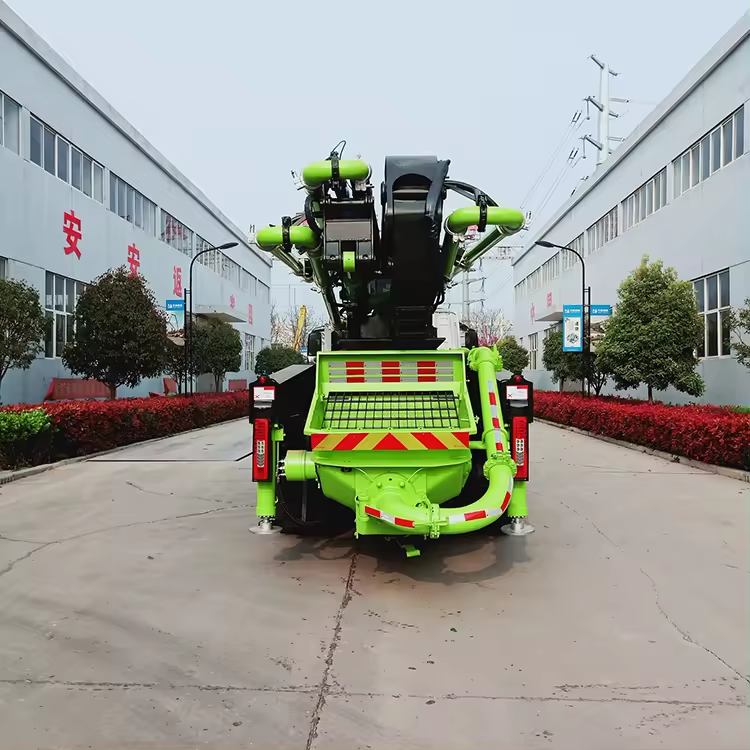

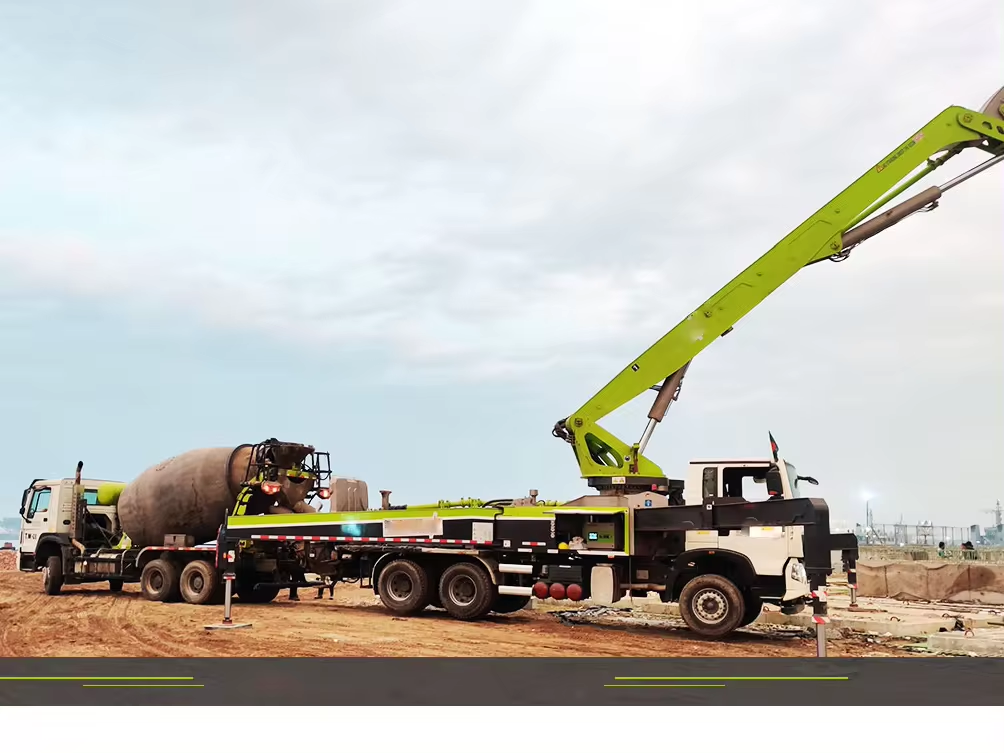

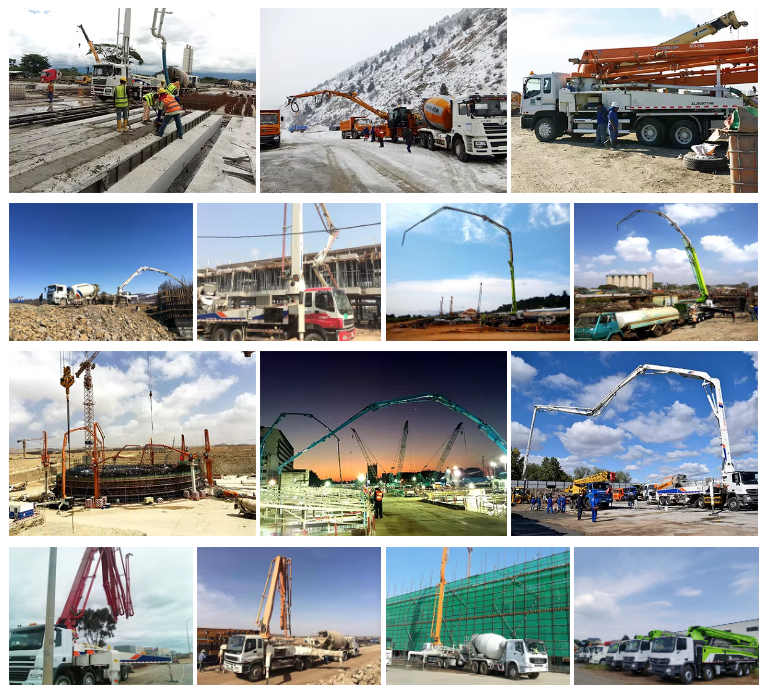

Pictures
