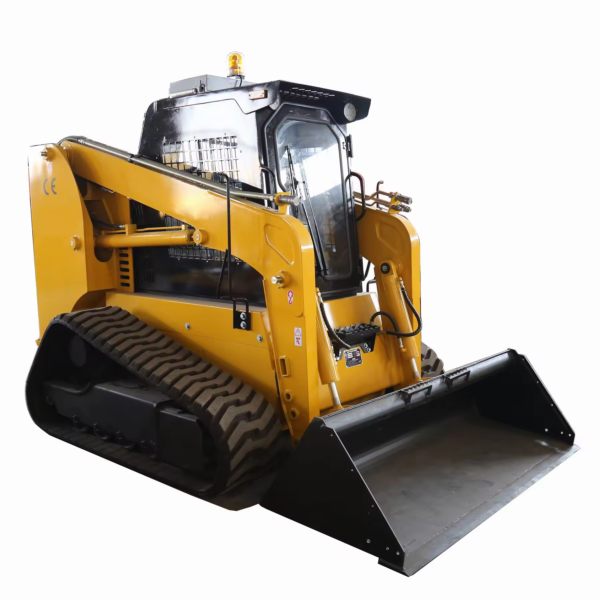

Mini skid steer loader
Skid steer loader is also called skid teer loaders, multi-functional engineering vehicles, and multi-functional engineering machines. It is a special wheeled chassis equipment that uses the linear speed difference of the wheels on both sides to achieve vehicle steering. It is mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently.
Description
Features
The overall size of skid steer loader is small, and it can realize in-situ steering; it can be randomly and quickly replaced or connected to various working devices at the job site. Its uses mainly include the following aspects.
(1) Since its minimum turning radius is less than half that of articulated loaders of the same class, it is especially suitable for operations in narrow sites such as urban infrastructure, roads or construction sites, factory workshops, warehouses, docks, ship decks and even ship cabins.
(2) The use of all-wheel drive and no inter-wheel differential facilitates operations on uneven sites.
(3) Different working devices can be replaced or connected in an instant at the job site, usually only taking a few minutes. Thus, operations such as shoveling, stacking, lifting, excavation, drilling, crushing, grabbing, pushing, loosening, trenching, road cleaning and road compaction can be carried out respectively.
(4) Used for logistics support, site cleaning and project closing of large construction machinery.
(5) It can be used as a mobile pump station to provide power source for handheld hydraulic picks and other hydraulic tools.
Technical Parameters
| Rated operating capacity(kg) | 1000 |
| Tipping load(kg) | 2000 |
| Bucket capacity(m3) | 0.5 |
| Operating weight(kg) | 4000 |
| Max. travel speed(km/h) | 12 |
| Hydraulic pump flow(L/min) | 75 |
| Fuel tank capacity(L) | 80 |
| Overall dimensions(mm) | 3500×1830×2015 |
