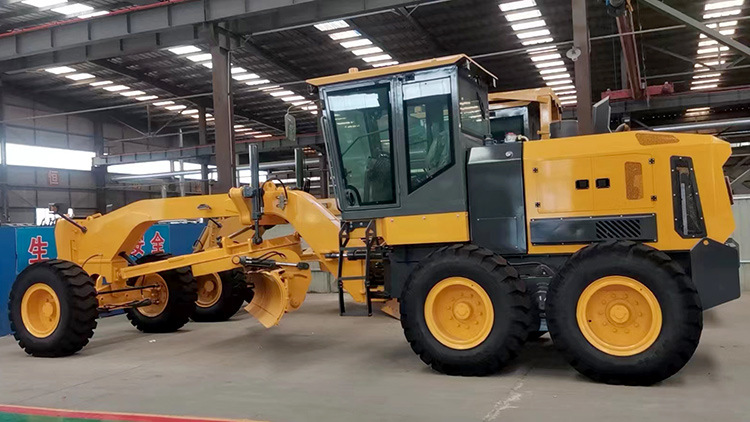

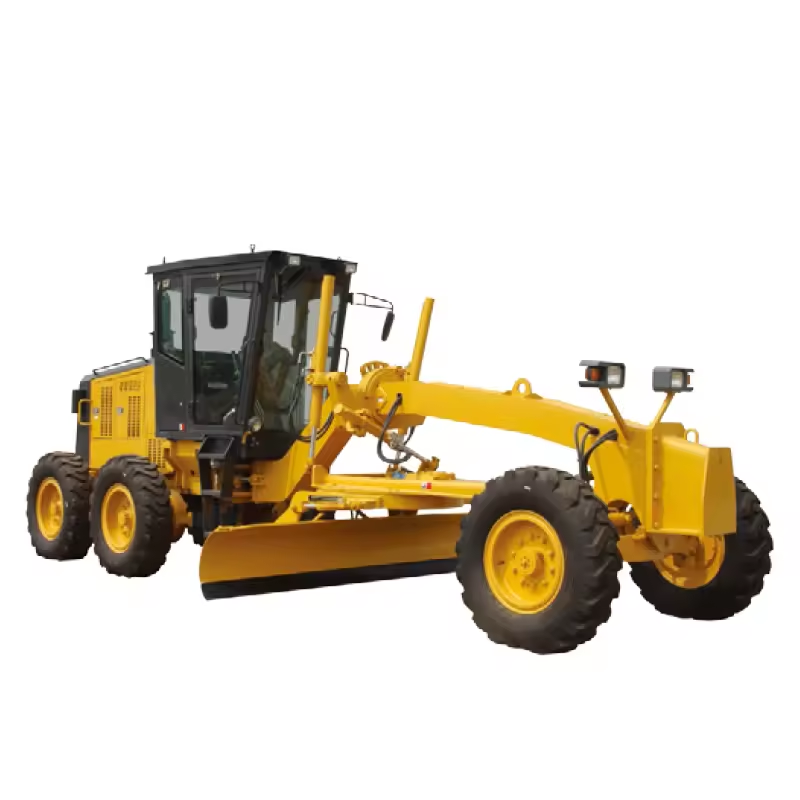

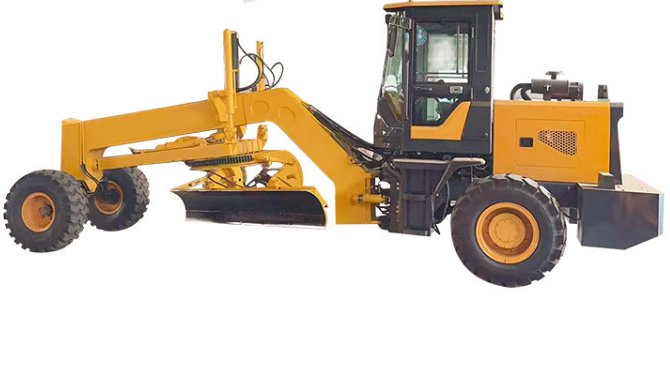

Motor grader

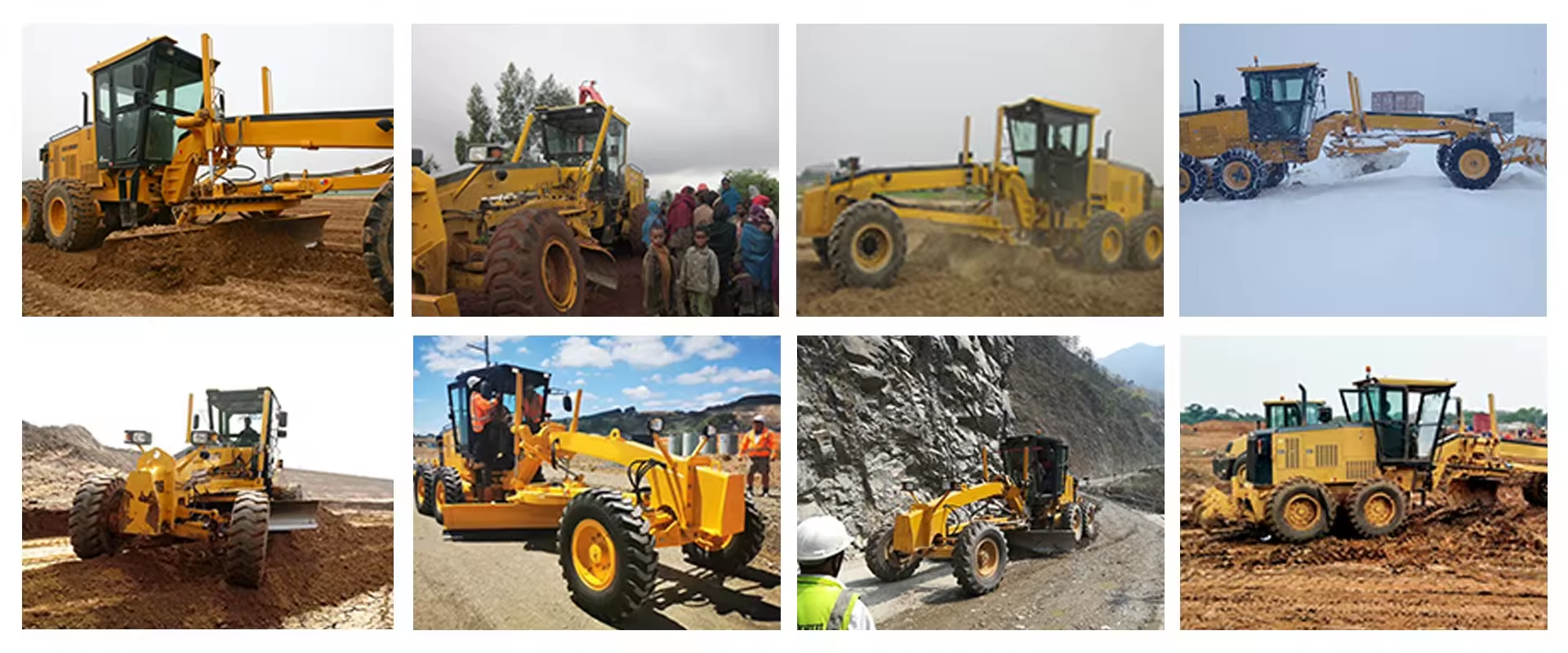

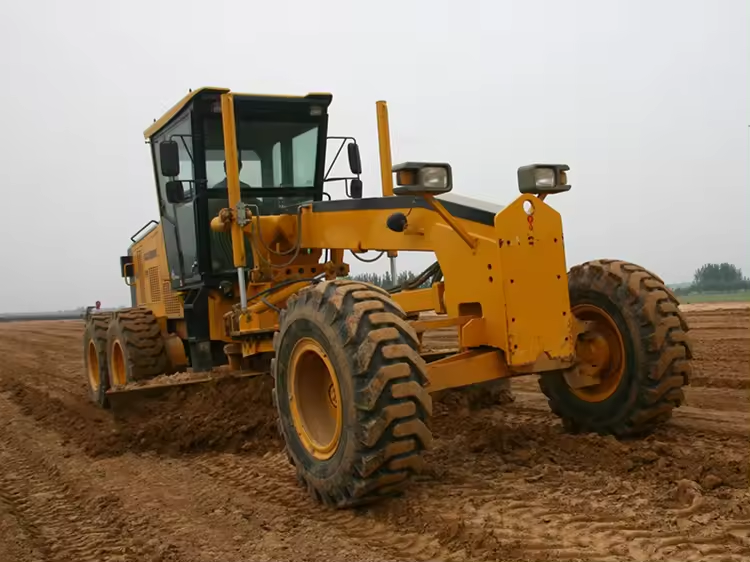

Self-propelled grader is suitable for large ground operations in foundation projects. They can also be used for trenching, slope scraping, bulldozing, soil loosening, snow removal and other operations. They are ideal for the construction of high-grade highways, railways, airports, ports, dams, industrial sites and farmland. Multi-purpose high-efficiency modern construction equipment such as leveling.
Description
Main feature

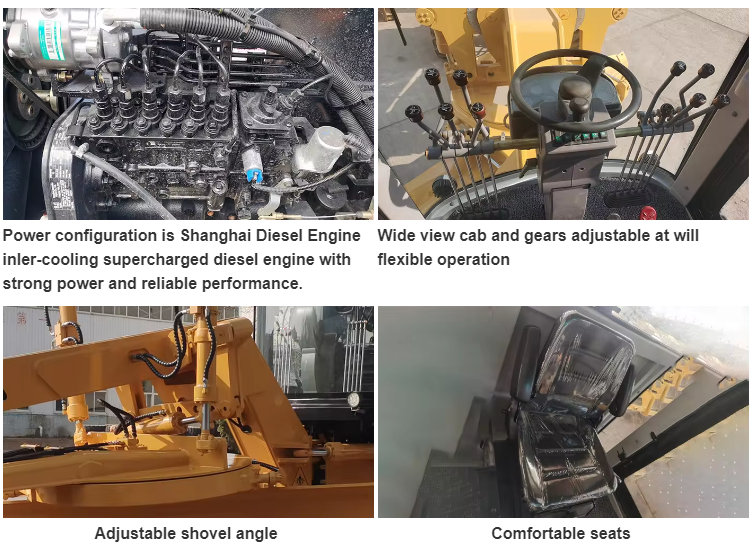

- The power configuration is Cummins or Wei diesel engine, which has strong power and reliable performance:
- The front 6 and rear 3 speed gears meet various working conditions during operation and driving:
- Built-in “NO-SPIN” tooth-type free-wheel anti-slip differential transmission drive axle and heavy-duty roller chain drive balance box, box-type swing steering front axle, can measure oblique tires:

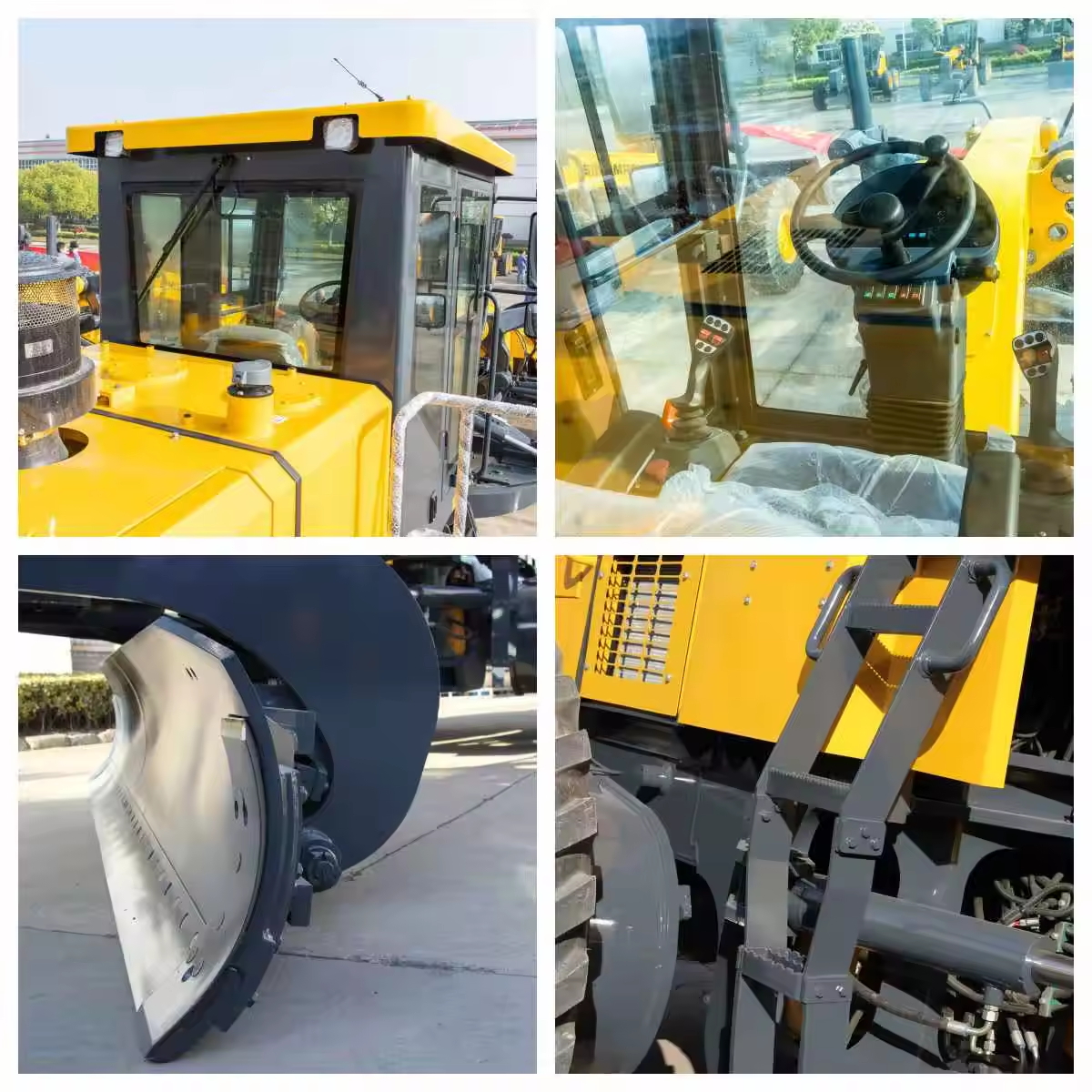

- It adopts the popular foreign swing-arm linkage operating device and comes standard with a maintenance-free roller-plate slewing device. Dual oil cylinders control the shoveling angle, which can control the angle of the blade entering the soil according to the different hardness of the soil;
- Two sets of imported HUSCO five-way control valves, a convenient and sensitive hydraulic control system, equipped with imported blade lifting hydraulic balance valves, and the unique hydraulic pin pulling device is the first in China:
- Using a central hinge mechanism and deflection steering front wheels, the whole machine can move like a crab:
- Adopts an accumulator braking system, four-wheel efficient caliper disc service brakes, and is equipped with an internal expansion shoe parking brake
- All control units adopt hydraulic control, complete instrument monitoring system, and maintenance-free battery:
- Optional front bulldozer and rear ripper
Technical Specification
| Length | 8820mm |
| Width | 2600mm |
| Height(To the top of the cab) | 3420mm |
| Wheel base | 6100mm |
| Tread | 2120(mm) |
| Min. turning radius | 7.3(m) |
| Operating weight | 5000-14500kg |
| Blade length | 3658mm |
| Blade height | 580mm |
| Shovel Blade thickness | 16mm |
| Max. lift above ground | 450mm |
| Max. grading depth | 535mm |
| Max. shoulder reach outside rear tire | 2000mm |
