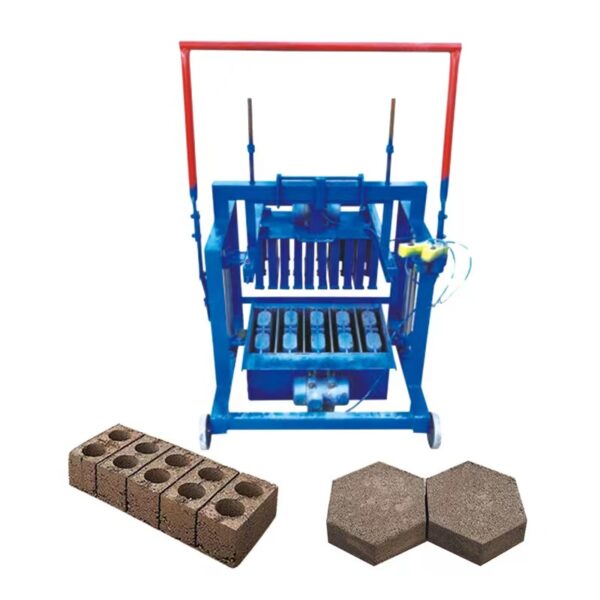

Small manual brick making machine
Brick making machine, this machine adopts the combination of hydraulic forming, low mold directional vertical vibration and upper mold pressurized vibration, so that the product can be formed quickly, with high density and uniform strength. Replacing the mold can produce hollow bricks, solid bricks, interlocking bricks, roadside stones, grass planting bricks and other concrete products. The appearance is accurate in size, regular in shape, free of burrs and corners.
Description
Brick making machine product type: concrete block bricks of various specifications such as hollow bricks, cement standard bricks, permeable bricks, slope protection bricks, pavement bricks, curb stones, etc.
Advantage
AS the molds are changeable, this concrete brick machine is able to produce different types of blocks/bricks, and this is a
hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.
Brick making machine manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved.
Technical parameter
| Host Dimensions | 1040*900*1300mm |
| weight | 200kg |
| power | 1.1kw |
| number of operators | 1-2 persons |
| pallet size | 850×550mm |
| Molding cycle | 15-18 s/time |
| monitor rate | 1.1KW |
| Capacity | 2000-3600pcs/day |
| Plant area | 5m2 |
