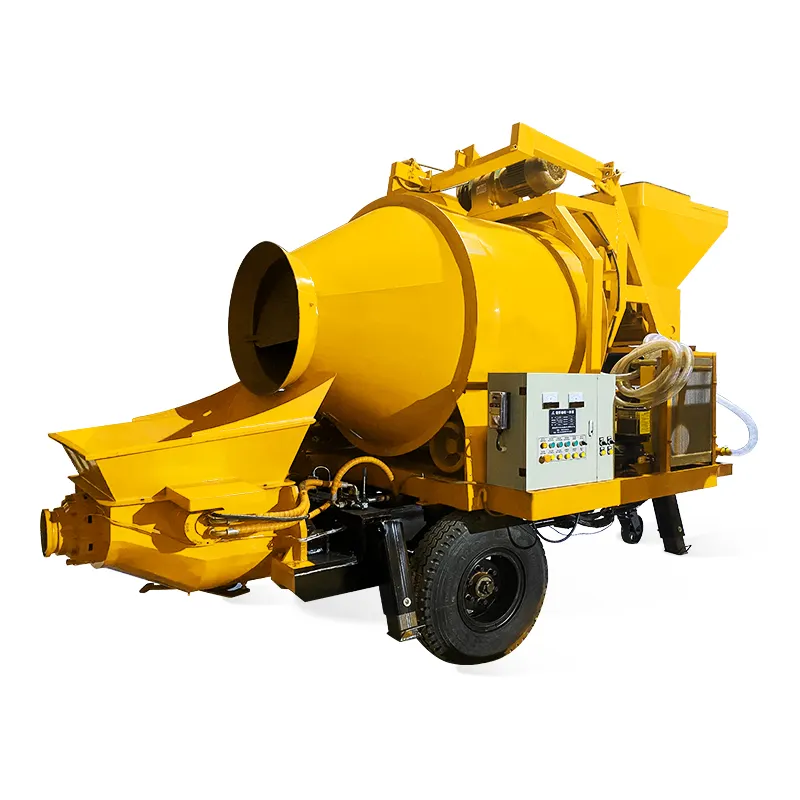

Diesel concrete mixer with pump
Concrete mixer with pump uses pipeline pumping to transport concrete to the floor that needs to be poured, solving the problems of continuity and safety of pumping.
Description
Feature:
Concrete mixer with pump adopts a fully automatic construction operating system and is a mobile mixing concrete conveying pump that integrates feeding, mixing, and high-pressure pumping. It can be mixed on site and pumped continuously, and the construction efficiency is 4-6 times that of traditional fixed mixers.

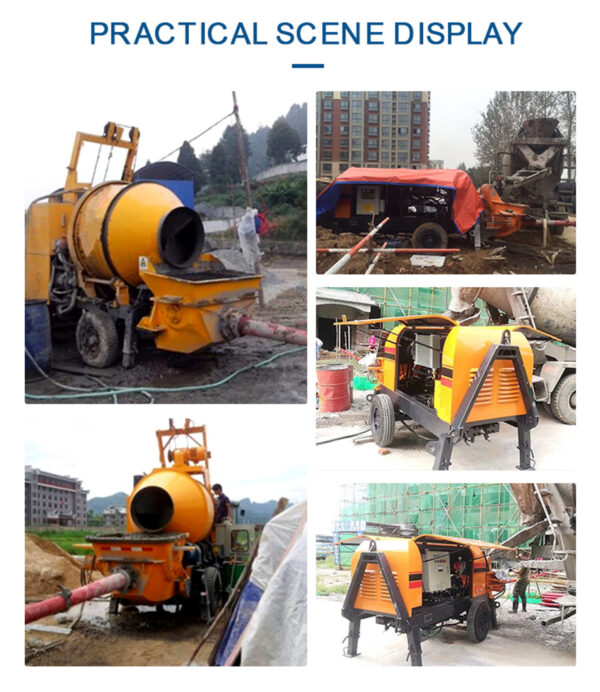

Application: road pouring; roof pouring; water conservancy and hydropower projects; construction of towns and new rural areas; construction of various roads such as highways, railways, tunnels, etc. It has the construction characteristics of convenient movement, simple operation, and is not limited by narrow construction space and large pouring volume.
Parameter
| Voltage | 380v,50hz |
| Power | 76kw |
| Aggregate size | 0.5-40mm |
| Conveying Capacity | 30m³/h |
| Horizontal conveying distance | 300m |
| Vertical conveying distance | 100m |
| Pipe diameter | 100-125mm |
| Maximum pressure | 10mpa |
| Material tank diameter | 100mm/125mm |
| Cylinder diameter * stroke | 180*1000mm |
| Pipe | steel pipe * 20m; soft pipe *10m |
| Dimension | 5000*2100* 2700mm |
| Weight | 5000kg |
