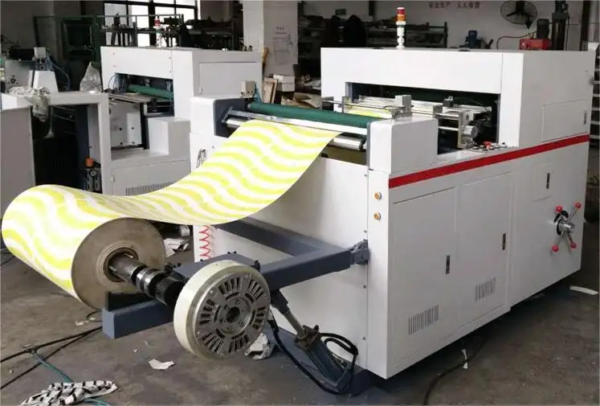

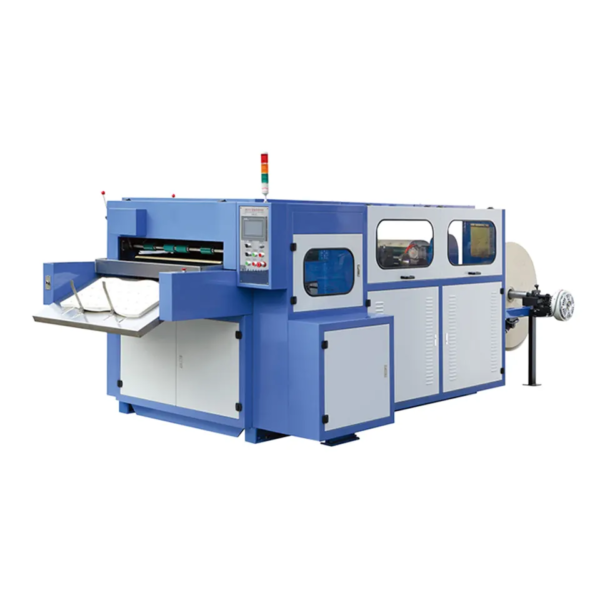

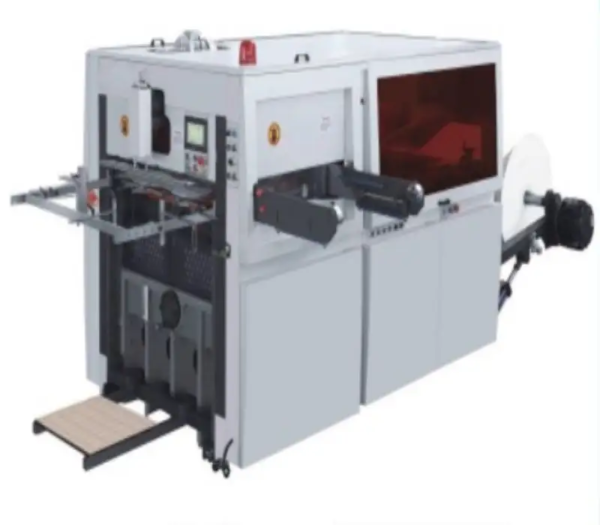

Paper die cutting machine
Die cutting machine is based on international advanced technology and has high stability, high safety performance, and high-precision finished products. It is widely used in industries such as printing, packaging, and paper products.
Description
Advantage
Die cutting machine adopts microcomputer, human-machine control interface, servo positioning, AC frequency converter, automatic counting, manual pneumatic locking plate, photoelectric correction system, electromagnetic clutch, centralized oil lubrication, overload protection and unique transmission device. Ensure smooth paper return and paper feeding operations, accurate positioning, and smooth paper return. All key components and control devices of the machine are imported. This device can achieve stable pressure, accurate positioning, smooth operation, safety and reliability of the whole machine.
Parameter
| Max cutting area | 1170mmx600mm |
| Cutting precision | ±0.15mm |
| Paper gram weight | 120-600g/㎡ |
| Production capacity | 100-180times/min |
| Air pressure requirement | 0.5Mpa |
| Air pressure consumption | 0.25m³/min |
| Max cutting pressure | 300T |
| Weight | 8.5T |
| Max roller diameter | 1600mm |
| Total power | 12KW |
| Dimension | 4500x2500x2000mm |
